StockMaster Mast Components
Complete Mast, Winchpack and Lift Table Modules for StockMaster Lift-Truk or to retrofit to Navigator.
MAST MODULES.
Includes complete Mast assembly for mounting to the frame, All Fasteners and Instructions
NOTE: Sizes 04 – 07 are a one-piece Mast assembly. Sizes 08 – 14 are a two piece Mast assembly.
When ordering for sizes 08 – 14. A common mast (Upper) is required as well as a Mast Extension (Lower)
Example – for a Lift-Truk size 09. Required parts would be 30SM-MAS00 + 30 SM-MAX09
The last 2 characters denote the StockMaster size.
Mast
Winch Pack
Lift Table
Spare-Parts-Mast
| Assembly | Replacement Part # | Size | Platform Height |
|---|---|---|---|
| ONE PIECE | 30SM-MAS04 | 4 | 1145 |
| ONE PIECE | 30SM-MAS05 | 5 | 1435 |
| ONE PIECE | 30SM-MAS06 | 6 | 1720 |
| ONE PIECE | 30SM-MAS07 | 7 | 2005 |
| TWO PIECE | 30SM-MAS00 | COMMON (UPPER) Order with part below | SIZES 08- 14 |
| TWO PIECE | 30SM-MAX08 | 8 | 2295 |
| TWO PIECE | 30SM-MAX09 | 9 | 2580 |
| TWO PIECE | 30SM-MAX10 | 10 | 2865 |
| TWO PIECE | 30SM-MAX11 | 11 | 3155 |
| TWO PIECE | 30SM-MAX12 | 12 | 3440 |
| TWO PIECE | 30SM-MAX13 | 13 | 3725 |
| TWO PIECE | 30SM-MAX14 | 14 | 4015 |

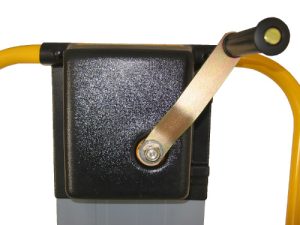

Spare-Parts-Winch Pack
| Replacement Part # | Size |
| 30SM-WIN00 | ALL (4-14) |

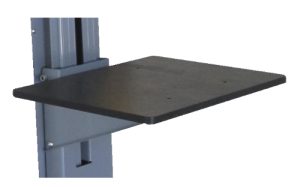

Spare-Parts-Lift-Table
| Replacement Part # | Size |
| 30SM-TABLTM00 | ALL (4-14) |
